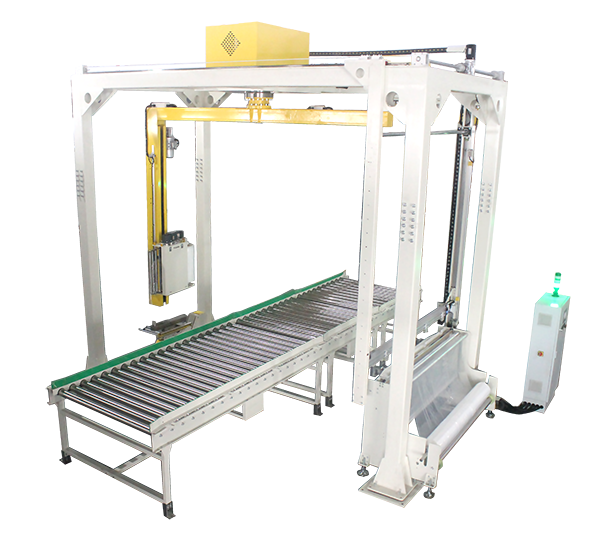

Overhead cantilever winding machine

产品介绍

Smecta intelligent top-covering cantilever winding machine adopts PLC control, photoelectric automatic detection of height, can automatically cover the packaging, stretch film, top and break packaging operations, with stable and safe performance, strong anti-interference ability, and simple operation And other characteristics, generally used to cooperate with large-scale packaging production lines.

技术参数

Machine size	L4400mmW2500mmH3850mm
Conveying height	800±50mm
Packing height	100-2100mm
Packaging efficiency	40-50 Torr/h
Cantilever rotation speed	Frequency ControlV=0-25RMP
Power voltage	2.23KW
Stretch film specifications	D250*500，Center holeD=70mm
Covering film specifications	Film roll diameterD35*1600，Center holeD=70mm
Topping speed	Servo Control V≦5M/min
Wrap specifications	L500-1300*W500-1300mm
Security system	High sensitivity emergency brake system
Film wrapping system	Stretch film pre-stretched, automatic film feeding
Automatic film breaking device	Automatic clamping, automatic welding film breaking, realizing unmanned operation
Air pressure	0.4-0.7Mpa
Air consumption	1200mL/min
Control System	Siemens PLC control, touch screen visual parameters, adjustable number of winding layers and times, automatic detection of cargo height
